	Specialized casting techniques are used to achieve the unique crystalline grain orientation found in the Alnico 5 and 8 grades. These anisotropic grades are designed to produce high magnetic output in a specified direction. Orientation is achieved during heat treatment, by cooling the casting from 2000?F at a controlled rate within a magnetic field which conforms to the preferred direction of magnetization. Alnico 5 and Alnico 8 are anisotropic and exhibit a preferred direction of orientation. Magnetic orientation should be specified on your drawing when you send an order to us. Cast Alnico 5 is the most commonly used of all the cast Alnicos. It combines high inductions with a high energy product of 5 MGOe or more and is used extensively in rotating machinery, communications, meters and instruments, sensing devices and holding applications. The higher resistance to demagnetization (coercive force) of Alnico 8, cobalt content to 35%, allows this material to function well for short lengths or for length to diameter ratios of less than 2 to 1. Sintered Alnico materials offer slightly lower magnetic properties but better mechanical characteristics than the cast Alnico materials. Sintered Alnico magnets are most suitable in small sizes (less than 1 oz.). In this process, the desired mix of metal powders is pressed to shape and size in a die, then sintered at 2300?F in a hydrogen atmosphere. The sintering process is well suited to large volume production, and results in parts which are structurally stronger than cast magnets. Relatively close tolerances can be achieved without grinding.

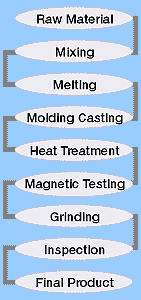

Product Flow Chat For Alnico

Cast Alnico -------------- Sinter Alnico

Typical Magnetic Performance Range for Cast Alnico Magnet

Grade	Br		Hcj		(BH)max		Density	Equivalent MMPA Class	%ChangePer C		Tc	Tw
Grade	mT	KGs	KA/M	Oe	KJ/m3	MGOe	G/cm3	Equivalent MMPA Class	Near Br	Near Hcj	(0C)	(0C)
*LN9	680	6.8	30	380	9.0	1.13	6.9	Alnico3	-0.03	-0.02	810	450
*LN10	600	6.0	40	500	10.0	1.20	6.9	Alnico3	-0.03	-0.02	810	450
*LNG12	720	7.2	45	500	12.4	1.55	7.0	Alnico 5	-0.03	-0.02	810	450
*LNG13	700	7.0	48	600	12.8	1.60	7.0		-0.03	-0.02	810	450
LNG37	1200	12.0	48	600	37.0	4.65	7.3		-0.02	+0.02	860	525
LNG40	1250	12.5	48	600	40.0	5.00	7.3
LNG44	1250	12.5	52	650	44.0	5.50	7.3
LNG 52	1300	13.0	56	700	52.0	6.50	7.3	Alnico 5DG
LNG60	1350	13.5	59	740	60.0	7.5	7.3	Alnico 5-7
LNGT28	1000	10.0	58	720	28.0	3.50	7.3	Alnico 6	-0.02	+0.03	860	525
LNGT36J	700	7.0	140	1750	36.0	4.50	7.3	Alnico 8HC	-0.025	+0.02	860	550
*LNGT18	580	5.8	100	1250	18.0	2.2	7.3	Alnico 8	-0.025	+0.02	860	550
LNGT32	800	8.0	100	1250	32.0	4.0	7.3		-0.025	+0.02	860	550
LNGT40	800	8.0	110	1380	40.0	5.0	7.3		-0.025	+0.02	860	550
LNGT60	900	9.0	110	1380	60.0	7.50	7.3	Alnico 9	-0.025	+0.02	860	550
LNGT72	1050	10.5	112	1400	72.0	9.00	7.3	Alnico 9	-0.025	+0.02	860	550

Typical Magnetic Performance Range for Sintered Alnico

Grade	Br		HcJ		HcB		(BH)max		Density	%Change Per C	Tc	Remark
Grade	mT	KGs	KA/m	Oe	KA/m	Oe	KJ/m3	MGOe	G/cm3	%K	OC	��
FLN8	520	5.2	43	540	40	500	8-10	1.0-1.25	6.8	-0.022	760	Isotropic
FLNG12	700	7.0	43	540	40	500	12-14	1.5-1.75	7.0	-0.014	810
FLNG14	570	5.7	78	980	76	950	14-16	1.75-2.0	7.1	-0.020	850
FLNG18	560	5.6	90	1130	88	1100	18-22	2.25-2.75	7.2	-0.020	850
FLNG28	1050	10.5	47	590	46	580	28-33	3.5-4.15	7.2	-0.016	850	Anisotropic
FLNG34	1100	11.0	51	640	50	630	34-38	4.3-4.8	7.2	-0.016	890
FLNGT28	1000	10.0	57	710	56	700	28-30	3.5-3.8	7.2	-0.020	850
FLNGT31	780	7.8	106	1130	104	1300	33-36	3.9-4.5	7.2	-0.020	850
FLNG33J	650	6.5	150	1880	136	1700	31-36	4.15-4.5	7.2	-0.020	850
FLNGT38	800	8.0	126	1580	123	1550	38-42	4.75-5.3	7.2	-0.020	850
FLNGT42	880	8.8	122	1530	120	1500	42-48	5.3-6.0	7.25	-0.020	850

Typical Applications for Alnico magnet:
Widely used applications such as instruments and meters which require very stable temperature properties.
Electronic ignition systems,watt bour meters,volt-amp meters.medical instruments,industrial motors,magnetic reed switches,generators,hand tools,vending machines.

*Small changes in magnetic properties to temperature effects
*Maximum working temperature can be as high as 450oC~550oC.
*Low coercive force.
*Strong corrosion resistance capability,no coating needed for surface protection.
