FLEXIBLE RUBBER MAGNETS SHEETING
Flexible Rubber magnets can be either isotropic and anisotropic. The anisotropic flexible magnets are made by extrusion or injection. Properties such as high elasticity, flexibility and machinability make these magnets a favorite candidate for many permanent magnet applications in industry and in home appliances. The isotropic rubber magnets are wide use for daily necessary industry, making this magnet in toy, family education, printing and decoration, etc. Flexible magnets (include plastic magnets and rubber magnets) are compounds of plastics or rubbers with magnetic powders. They are light in special weight, soft, elastic, stable, easy to be processed, energy-saving etc. The application field ranges from electronic & electric industry, daily necessary industry, motor stators and rotators, family education, printing and decoration etc. The size, shape and magnetization pattern can be manufactured according to user's need.

Bonded ceramic magnet can be supplied in both Isotropic and anisotropic form (i.e. rubber magnet), and is ideal for applications where a low cost magnet needs to be combined with complex form precisely, plastic magnet is made by injection molded, while rubber magnet can be extruded or rolled into long or thin shape.

Adhesive magnet is laminated Flexible magnets adhered to various kinds of PVC, PP, double-sided tape. The colors of films are various. It is normally used on teaching, children's toys, gifts and advertising. The magnetization (pole-width 2, 4, 7 mm or 12.7/6.4/3.6 poles per inch) or be decided according to customers' needs.

Our wide range of sheeting and strip (coated or uncoated) offers true flexibility--because it comes in the strengths, sizes and shapes you need. We have regular strength or high energy products, with energy product from 0.6 to 1.7 MGO, thickness from 0.5 to 9 mm thick, in lengths up to users' specification. Customer cutting slitting, die-cutting, scoring or score-cutting to customers' specifications are also available.

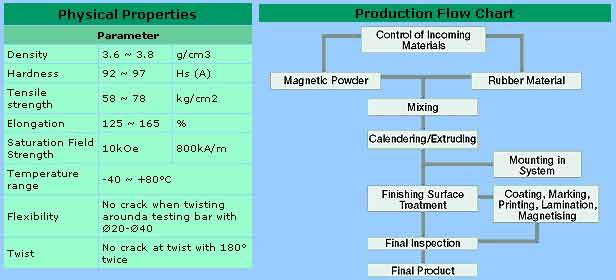

FLOW CHART


Flexible Magnetic Sheeting
Flexible Magnetic Sheeting is produced with calendar process. It is normally used in office appliance, advertising, checking and testing meters etc. According to its magnetization method, it is divided into penetration magnetization and surface magnetization. The maximum width we can make is 1000mm, and the thickness is from 0.25-10mm. The pole pitch for thickness below 0.5mm is 2mm, for thickness 0.5 mm-1mm, the pole pitch is 2.5mm -3mm, if the thickness exceed 1mm, the pole pitch is 4mm - 5mm.

The magnetic sheet can be covered with chrome paper or white PVC film, then printed with the fine and exquisite patterns. It can be die-cut into various shapes of the fine and exquisite refrigerator magnet. It is mainly used in the advertising propagation, gift promotion, children' cartoon toys etc.



Code
Br
Hcb
Hcj
(BH)max
Forming way
Size
T KA/m KA/m KJ/m3
Max Length(m)
Max Width(mm)
Height(mm)
N-1
0.13~0.18
80~120
100~160
4~6.4
Calendering
100
400
0.4~1.1
N-2
0.18~0.22
100~140
120~190
6.4~8.0
Calendering
2
930
0.6~3
N-3
0.21~0.239
140~165
150~210
8.0~10.4
Calendering
100
400
0.4~1.5
N-4
0.24~0.265
156~181
200~270
10.4~12.5
Calendering
2
400
0.6~6

Flexible Magnetic Extrusions

Flexible Magnetic Strips are thermoplastic permanent magnetic Extrusions. It can provide superior holding power and widely used in stationery, household appliance, water-tight appliance. According to its magnetic property, it is divided into anisotropic and isotropic; according to its magnetization way, it is divided into surface magnetization and penetration magnetization (longitudinal, transverse and bilateral).

Extruded magnetic strips are widely applicable for the electric refrigerator door sealing, drinking water machine door sealing, magnetic drawing board, toy, teaching, bathroom seal strip, relay, switch and so forth. It can provide superior holding power and widely used in stationery, household appliance, water-tight appliance. According to its magnetic property, it is divided into anisotropic and isotropic; according to its magnetization way, it is divided into surface magnetization and penetration magnetization (longitudinal, transverse and bilateral). Our existing size is 12x4mm, 9x3mm, 9x2.5mm, 9x2mm, 8x4mm, 12.7x1.5mm, 25.4x1.5mm, the length is as per user's request




Code
Br
Hcb
Hcj
(BH)max
Forming way
Size
T
KA/m
KA/m
KJ/m3
Max Length(m)
Max Width(mm)
Height(mm)
AMC-1
0.13~0.18
80~115
100~160
4~6.4
Extrusion
100
400
0.4~1.1
AMC-2
0.18~0.22
100~140
120~190
6.4~8.0
Extrusion
2
930
0.6~3

Physical properties of extruded magnetic strip
Code
Tensile Strength (MPa)
Elongation Rate (%)
Hardness (SHA)
Temperature (oC)
Density (g/cm3)
AMC-1
5~10
30~100
85~98
-10~80
3.6~3.7
AMC-2
5~10
40~100
85~98
-10~80
3.6~3.7



Film-Covered Magnets

Film-covered magnet is Iaminated Flexible magnets adhered to various kinds of PVC. PP, double-sided tape .The colors of films are various. It is normally used on teaching aid, children toys, gifts and advertising.

Flat fridge magnets is a kind of soft magnetic product, it has very soft surface which will not hurt the surface of refrigerator. You can have any color or any shape on fridge magnet you like.
We can also provide all other similar products, such as magnetic dart, magnetic calendar, magnetic photo frame, magnetic puzzle, magnetic phone index, magnetic message board, etc.



Magnetic Business Card
Magnetize your business cards! The flexible material makes standard-sized 2" x 3 1/2" business cards magnetic. Simply remove liner to expose adhesive, then affix business card.

Magnetic Photo Frames
The popular flexible, vinyl, light weight magnetic picture frames with strong, solid magnetic backing. We offer die-cut seams which make the picture frames especially durable.

Magnetic Tape With Dispenser
Our adhesive backed magnetic tape makes organizing your life easy. It could be cut with dispenser very easily and safely. Just stick to your pictures, menus, business cards, or any other lightweight object, then post it on any magnetic surface

Magnetic properties of film covered magnets
Code
Br
Hcb
Hcj
(BH)max
Forming way
Size
T
KA/m
KA/m
KJ/m3
Max Length(m)
Max Width(mm)
Height(mm)
ZY-1
0.13~0.18
80~120
100~160
4~6.4
Calendering
100
400
0.4~1.1
ZY-2
0.18~0.22
100~140
120~190
6.4~8.0
Calendering
2
930
0.6~1.5
ZY-3
0.21~0.239
140~165
150~210
8.0~10.4
Calendering
100
400
0.4~1.5
ZY-4
0.24~0.265
156~181
200~270
10.4~12.5
Calendering
2
400
0.6~1.5

 Physical properties of film-covering magnets
Code
Hardness (SHA)
Temperature (oC)
Density (g/cm3)
ZY-1
85~98
-10~80
3.6~3.7
ZY-2
85~98
-10~80
3.6~3.7
ZY-3
85~98
-10~80
3.6~3.7
ZY-4
85~98
-10~80
3.6~3.7
